Concealed Metal Box
Engineered for Precision
CONCEALED METAL BOX
The Premium Foundation of Modern Architecture.
Engineered To Outlast &
Build To Protect
Our premium metal boxes are crafted from robust galvanized Iron sheets used in Construction to embed Electrical accessories like Switches & Sockets into walls with armor grade protection which protects the fragile & bulky wires from Environmental Elements such as corrosion or moisture.

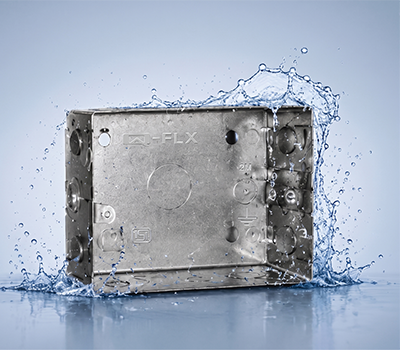

“Rust Proof &
Crush Proof ”
“Alkaline
Protection &
Rust Resistance”
Our Concealed galvanised Metal boxes engineered with sacrificial zinc protection when exposed to highly alkaline properties of wet cement and plaster inside walls. The Galvanized layer resists this Chemical degradation much longer than standard mild steel.
Armor Grade protection Hidden within Your Walls.
CORE ENGINEERING
SPECIFICATIONS

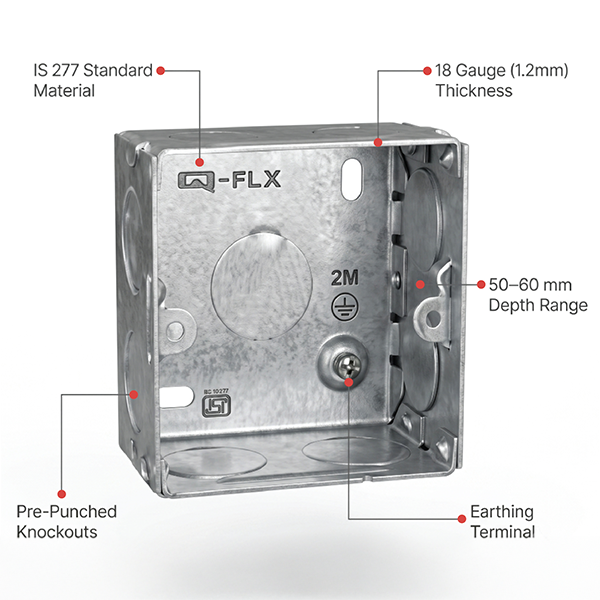

Constructed from pre-galvanized iron sheets conforming to IS 277 standard.
Sheet thickness, standard dimensions, and depth as per IS 14772 which suits the switch module,wiring volume for both Residential and commercial use.
Pre-punched conduit entry knockouts spaced on all sides of the boxes.
Equipped with earthing terminals to Ensure safe grounding.

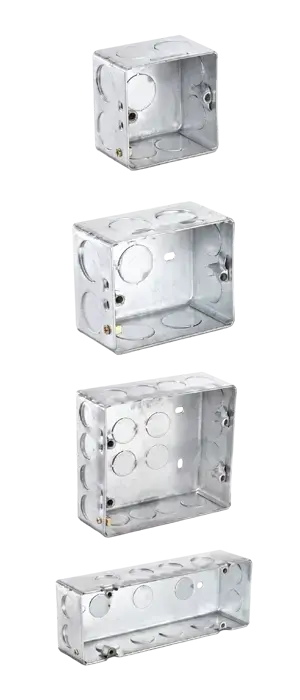

| METAL BOXES 1.2 MM THICKNESS | ||||
|---|---|---|---|---|
| Image | Product Code | Description | Dimensions (mm) | Std. Packing (No's) |
 | 120226 | 2M Metal Box | 75 × 75 × 50 | 112 |
| 120326 | 3M Metal Box | 75 × 101 × 50 | 84 | |
| 120426 | 4M Metal Box | 75 × 135 × 50 | 56 | |
| 120626 | 6M Metal Box | 75 × 210 × 50 | 37 | |
| 120826 | 8M Metal Box | 75 × 233 × 50 | 37 | |
| 121226 | 12M Metal Box | 133 × 210 × 60 | 20 | |
| 121626 | 16M Metal Box | 145 × 231 × 60 | 20 | |
| 121826 | 18M Metal Box | 201 × 209 × 60 | 20 | |
Other thickness upon request.
Order to be placed according to Standard Carton packing.
