PVC Insulation Tape

OUR PRODUCTS
Application

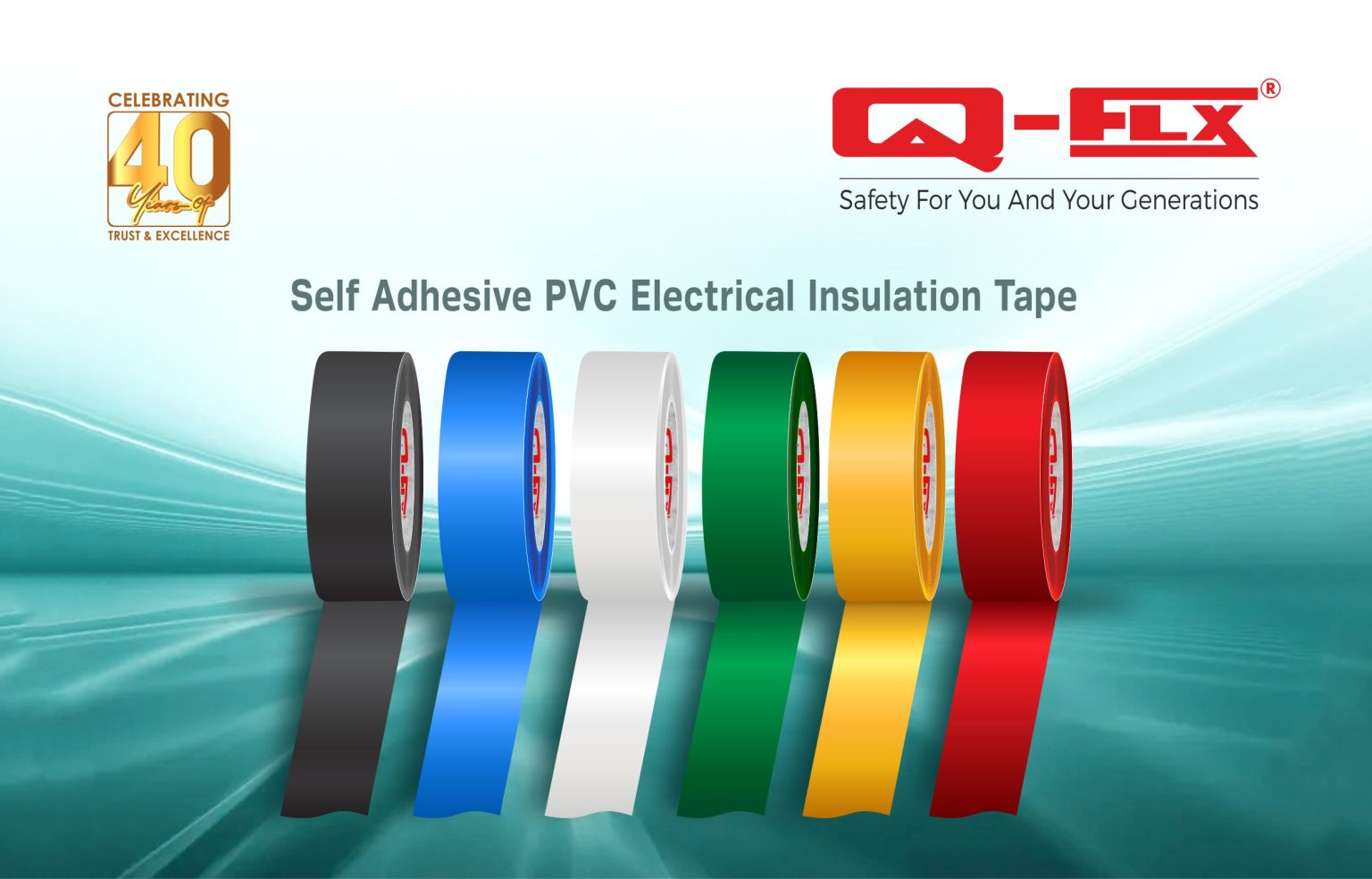

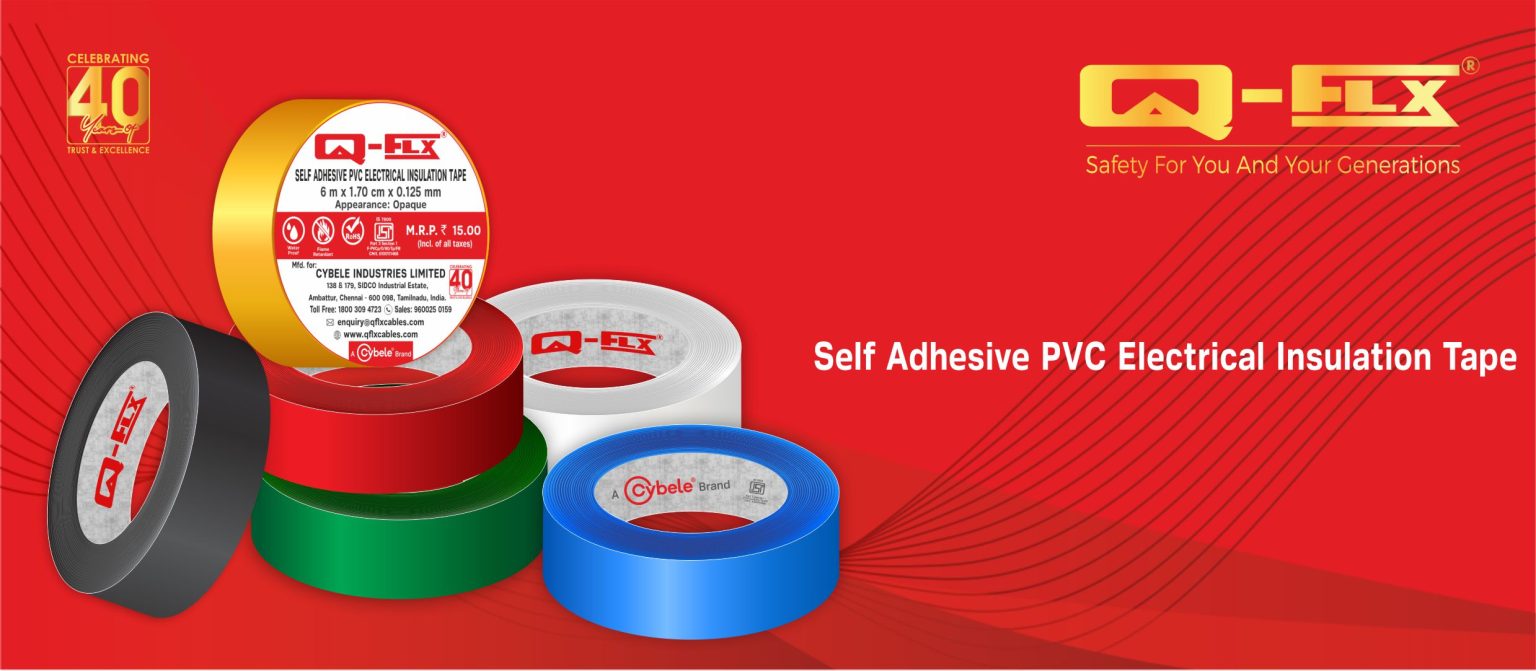

Q-FLX Self Adhesive PVC Electrical Insulation Tape is a professional grade, Fire Retardant (Self-Extinguishing), Waterproof, Electric grade PSA tape made with premium quality PVC film (RoHs) and Engineered with rubber based Adhesives manufactured as per IS 7809 test methods for Superior Performances.
Technical Data
  • Stretchable
  • Moulds itself to any Surface
  • Grips Firmly
  • Weather-Proof
  • Non-Ageing
  • Withstands up to 40KV
  • Resistant to Acids, Alkalis and Oils
  • Long-Lasting Insulation Properties
Product Features

Superior Quality
Strong Adhesion
Better Durability
Available Colours:
  • Black
  • Blue
  • Green
  • Red
  • Yellow

Technical Specification

Number / Dia of  in InchesProduct CodeColorPrice ₹Package
6 mtr x 1.70 cm x 0.125 mmQF018 FR-01Mix*Ask for Price(24 Boxes X 30 Rolls) 720
   TECHNICAL PARTICULARS OF  PVC  INSULATION  TAPE
DOCUMENT NO:CIL/NPD/TDS/TPE/01REV / DATE : 00 / 14.11.2025
SL.NOPARAMETERSREQUIREMENTS
1Product CodeQF018 TAPE PVC FR-01
2Thickness0.125 mm ± 0.010 mm
3Insulation Resistance105 Mohms/25 mm width
4Tensile Strength150 N/10 mm width per mm thickness
5Elongation at break1
6Adhesion to Metal1.6 N/10 mm width
7Adhesion to Self1.3 N/10 mm width
8Flammability<50mm
9AnchorageNMT
10Fire RetardantFR
11AppearanceOpaque
12Designation of the TapeF-PVCp/0/90/Tp/FR
13Core Diameter38 mm ± 1 mm
14Width17 mm + 1 mm
15LengthNot less then 6M
16Electric Strenght at Room Temp45 kV/mm Thickenss
17Electric Strenght after humidty conditiong50 kV/mm Thickenss
18Stability to accelrated ageing1.5 N/10 mm width
19Electrolytic CorrosionCentral Value 1%
20ColoursAs per PO
Note: Product should meet RoHS Requirement.FORMAT NO:- CIL-NPD-F23 REV 00
