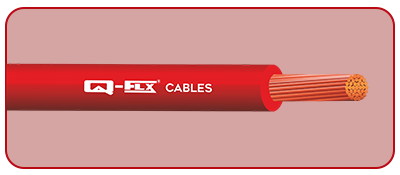

    UL-1015 105°C (APC \ ATC)

    Download PDF

    Applications

    • Internal Wiring where higher voltage and temperature are required, such as Industrial Control Panels
    • Switchgear, Motor Controls, HVAC Equipment
    • Electrical Cabinets, Industrial Machinery

    Features

    • PVC Self - extinguishing and flame retardant, test method to UL VM-1 and CSA FT 1/ FT 2
    • Rated for Continuous use up to 60°C or 80°C in oil and 105°C in Dry.

    Technical Date

    StandardUL-Std. 758. Complies to CSA No. 22.2 210
    Nominal Volatage300 V
    Test Voltage (Spark Test) AWG 28 to 24 → 4 KV (DC)
    AWG 22 to 20 → 5 KV (DC)
    AWG 18 to 16 → 6 KV (DC)
    ≤ AWG 14 → 7.5 KV (DC)
    Temperature Range Flexible -5°C to +105°C
    Fixed Installation -40°C to +105°C
    Temperature at ConductorMax. UL and CSA: +105°C
    Bending RadiusFlexing 10 x Cable Ø. Fixed Installation 5 x Cable Ø

    Certification & Compliance

    Cable Design Parameters

    S.NOAWGSize / SQ.MM
    (Approx)    		No of Strand
    Dia (MM)    		Avg. Min.
    Conductor
    Dia (MM)    		Approx
    Diameter
    Conductor    		Avg.
    Insulation
    Thickness    		Min.
    Insulation
    Thickness    		Nominal
    Cable
    Dia
    0128 AWG0.080470.125 (±0.005)0.390.770.681.95 (±0.010)
    0226 AWG0.12870.160 (±0.008)0.490.770.682.00 (±0.010)
    0324 AWG0.20570.200 (±0.008)0.610.770.682.15 (±0.010)
    0422 AWG0.32470.250 (±0.008)0.760.770.682.30 (±0.010)
    0520 AWG0.51970.350 (±0.008)0.950.770.682.50 (±0.010)
    0618 AWG0.823160.260 (±0.005)1.200.770.682.75 (±0.010)
    0716 AWG1.317260.260 (±0.005)1.560.770.683.10 (±0.010)
    0814 AWG2.08410.260 (±0.005)1.910.770.683.45 (±0.010)
    0912 AWG3.31650.260 (±0.005)2.410.770.683.95 (±0.010)
    1010 AWG5.261050.260 (±0.008)3.060.770.684.60 (±0.010)
    1110 AWG6840.310 (±0.008)3.050.770.684.75 (±0.010)
